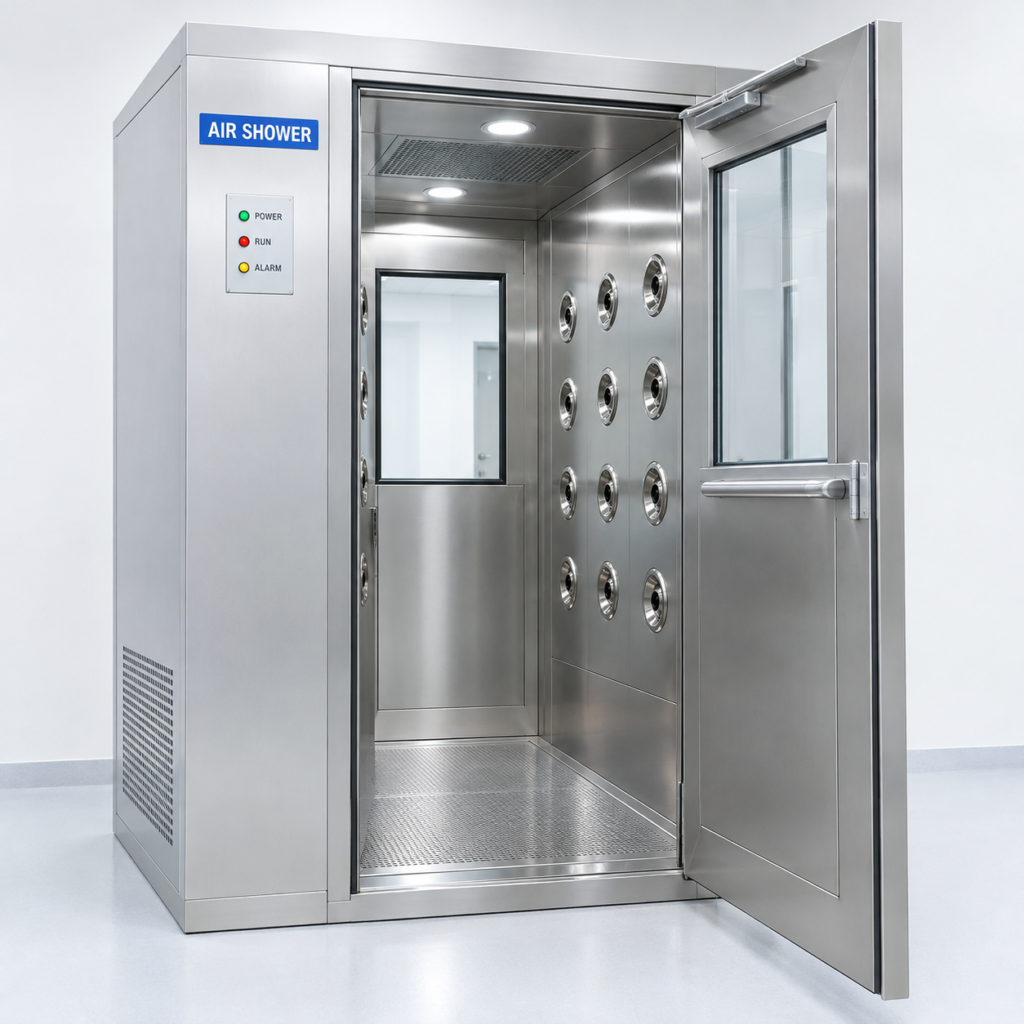

Air Shower Unit
An air shower is a specialized, self-contained chamber installed at the entrance to cleanrooms and other controlled environments. Its primary purpose is to remove loose particulate matter, such as dust, fibrous lint, and other contaminants, from people and products before they enter the clean space. This process is crucial for maintaining the integrity of the cleanroom and preventing contamination that could compromise sensitive processes or products.
How an Air Shower Works
The operation of an air shower is based on a high-velocity air-scrubbing process:
- Entry and Activation: A person or item enters the air shower, and the doors close. An interlocking mechanism prevents both the entrance and exit doors from being opened at the same time, which would compromise the cleanroom's pressure and cleanliness. Sensors, often motion or infrared, activate the decontamination cycle.
- Decontamination Cycle: High-velocity jets of HEPA (High-Efficiency Particulate Air)-filtered air are blown from nozzles on the walls and ceiling of the chamber. This forceful air stream, with velocities typically ranging from 20 to 25 m/s (4,000 to 5,000 fpm), dislodges particles from clothing, skin, and other surfaces. Personnel inside the unit may be required to raise their arms and turn 360 degrees to ensure all surfaces are exposed to the air jets.
- Filtration and Recirculation: The contaminated air is then drawn through floor vents or return grilles. It passes through a series of filters, including a pre-filter to capture larger particles and a HEPA or ULPA (Ultra-Low Penetration Air) filter to capture sub-micron particles. The now-clean air is recirculated through the system and is ready to be used for the next cycle.
- Exit: Once the decontamination cycle is complete (typically lasting 15-30 seconds), the exit door unlocks, allowing the person or item to proceed into the cleanroom.
Key Features and Components
- High-Velocity Air Jets: The heart of the system, these nozzles are designed to create a powerful, turbulent air flow to dislodge contaminants.
- HEPA/ULPA Filters: These filters are essential for ensuring the air used for decontamination is clean. HEPA filters typically remove 99.97% of particles down to 0.3 micrometers, while ULPA filters offer even higher efficiency.
- Interlocking Doors: A critical safety and contamination control feature that ensures a single-direction flow and prevents the simultaneous opening of both doors.
- Programmable Controls: Modern air showers use a microprocessor or PLC (Programmable Logic Controller) to manage the decontamination cycle time, lighting, and door interlocks.
- Construction Materials: Units are typically constructed from cleanroom-compatible materials like stainless steel or powder-coated steel, which are durable and easy to clean.
- Emergency Stop: A safety feature that allows occupants to immediately stop the cycle and open the doors in case of an emergency.
Applications
Air showers are a vital component in industries where maintaining a sterile, particle-free environment is critical. Common applications include:
- Pharmaceutical and Biotechnology: Protecting drug manufacturing, research, and laboratory environments from airborne contaminants.
- Microelectronics and Semiconductor Manufacturing: Preventing tiny dust particles from damaging microchips and other sensitive electronic components.
- Food and Beverage Processing: Ensuring hygiene and preventing contamination in food preparation and packaging areas.
- Aerospace and Automotive: Controlling particulate matter in facilities where precision manufacturing or assembly takes place.
- Medical and Healthcare: Maintaining sterility in surgical suites and other sterile zones.
Types and Configurations
Air showers come in various configurations to suit different needs and facility layouts:
- Single-Person Units: Designed for one person to enter and exit.
- Tunnel-Style Air Showers: A long chamber that allows for the continuous passage of multiple people or larger equipment, such as carts, conveyors, or pallets.
- 90-Degree or L-Shaped Units: Designed for facilities where the entry and exit points are not directly opposite each other.
- Low-Profile Air Showers: Designed for facilities with low ceilings.
- ADA-Compliant Units: Sized to accommodate wheelchairs and meet accessibility standards.
- Cart/Parts-Cleaning Air Showers: Specifically designed to decontaminate materials and equipment rather than people.
