Cleanroom Equipment

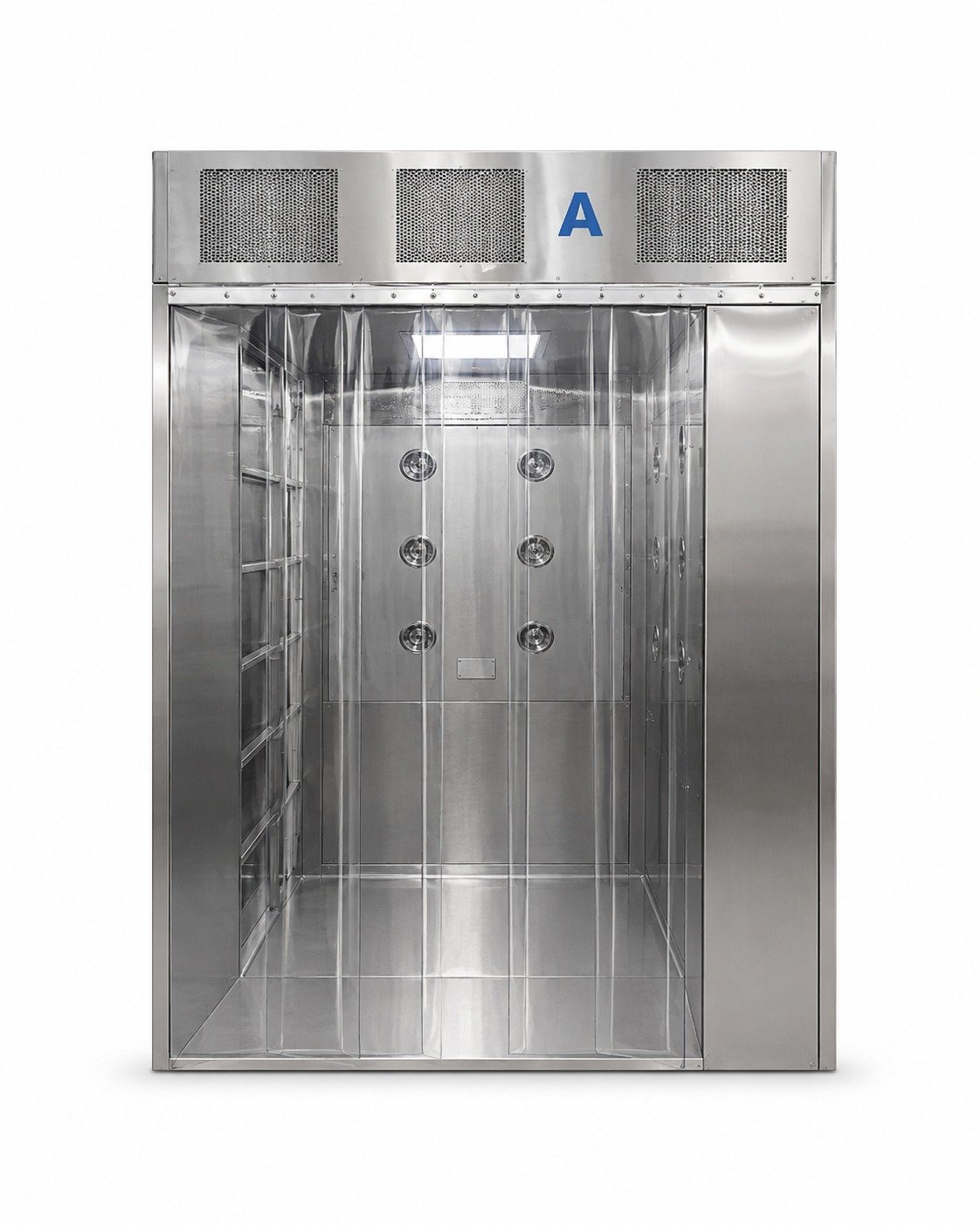

Reverse Laminar Air Flow Booth
Reverse Laminar Air Flow Booths are designed
to provide contamination-free environments
for sampling and dispensing operations in
pharmaceutical and cleanroom industries.
Product Overview
Sampling / Dispensing Booth System
Accumax India Reverse Laminar Air Flow Booths are specially designed to provide contamination-free environments during sampling and dispensing operations in pharmaceutical and industrial cleanroom applications.
The system uses reverse vertical laminar airflow technology with HEPA filtration to remove airborne particles and maintain a safe and sterile working area for operators and products.
These booths are widely used in pharmaceutical, food, chemical, and biotechnology industries where contamination control and operator protection are essential.
Technical Details
Product Specifications
MOC
Stainless Steel 304 Grade
Working Area
1800x900x1800mm Or Customized
Filtration
Triple Stage Filtration
Prefilter
Washable Prefilter Down To 10 Microns, Particulate Efficiency Of 90%Down To 10 Micron
Hepafilter
Media Glass Fiber Efficiency 99.99% Particle Retention 0.3 Microns
Intermediate Filter
95% Down To 5 Micron
Air Flow
Recirculating Laminar Vertical Air Flow
Cleanliness Level
Class 100
Motor Blower
Dynamically Balanced ¼ HP Motor
Utility
LED, UV Tube, Magnahelic Gauge, DOP Port, On-Off Switch
Noise Level
65 Decibels ± 5%
Curtain
Anti-Static PVC Curtains
Documentation
DQ , IQ , OQ & PQ Optional
Electric Supply
Work On 220 V AC, 1 Phase
Features
Key Features
- Contamination-free sampling environment
- Reverse laminar airflow technology
- Heavy duty blower assembly
- Low noise operation
- High efficiency HEPA filtration
- Easy cleaning and maintenance
- Energy efficient system
Applications
Industry Applications
- Pharmaceutical industries
- Sampling operations
- Dispensing processes
- Research laboratories
- Food processing industry
- Chemical industries
- Cleanroom environments
