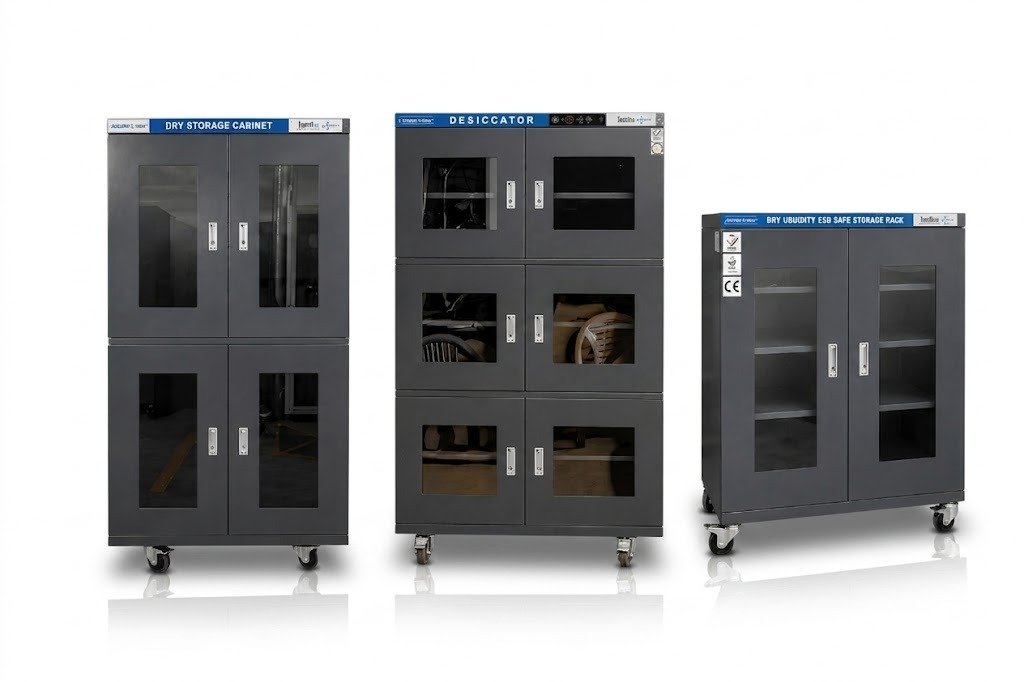

ESD Storage Cabinet
The ESD Dry Cabinet is a high-precision storage solution designed for moisture-sensitive components. It features a rapid recovery rate, returning to 20% RH within 30 minutes of door closure. The cabinet offers a wide humidity range (1–60% RH) with high display precision (±3% RH, ±0.5°C). It is available in capacities from 98 to 1436 liters, with a 6-door configuration and 4 swivel wheels (front two with brakes). Options include nitrogen purging, USB data logging, and alarm systems.
Product Overview
ESD Storage Cabinet
The ESD Dry Cabinet is a high-performance moisture-controlled storage solution engineered to protect humidity-sensitive electronic components, semiconductors, PCB assemblies, and optical devices. With a wide adjustable humidity range spanning from as low as 1% RH up to 60% RH and a display precision of ±3% RH and ±0.5°C, this cabinet ensures consistent environmental stability. It features a rapid recovery rate, returning to 20% RH within just 30 minutes after door opening and closure, preventing moisture-induced damage. Available in capacities from 98 to 1436 liters with a 6-door configuration, the cabinet is built on 4 swivel wheels (front two with brakes) for mobility. Optional features include nitrogen purging, USB data logging, open door alarms, over-humidity alarms, and extra shelves, making it suitable for stringent industrial, pharmaceutical, and laboratory applications.
Technical Details
Product Specifications
1.Capacity
98 – 150 liters |
2.External Dimensions (approx.)
450–600 mm (W) x 400–500 mm (D) x 600–800 mm (H) |
3.Door Configuration
1 or 2 doors |
4.Humidity Range
1–60% RH (adjustable) |
5.Display Precision
±3% RH, ±0.5°C |
6.Recovery Time
Recovers to 20% RH within 30 minutes after door open/close |
7.Construction
Stainless steel or anti-static coated body |
8.Wheels
None (rubber feet / leveling pads for tabletop stability) |
9.Optional Features
USB data logger, over-humidity alarm, open door alarm, nitrogen purging, extra shelves |
10.Power Supply
110–230V AC, 50/60 Hz, low wattage |
Features
Key Features
- Humidity Range: 20–60% RH (adjustable), with optional ranges of 10–20% RH, 1–10% RH, or 1–50% RH
- Display Precision: ±3.0% RH, ±0.5°C (also noted as ±1.0°C)
- Fast Recovery: Recovers to 20% RH within 30 minutes after door is opened for 30 seconds and closed
- Construction: 6 doors, 4 wheels (front two with brakes)
- Available Options: Data logger with USB port, open door signal alarm, over humidity signal alarm, extra shelves
Applications
Industry Applications
- Electronics & PCB Storage
- Semiconductor Components
- Pharmaceutical Applications
- Laboratory & R&D Use
- Precision Instruments & Measuring Tools
- IC, BGA, SMT, and silver/copper plated components
