Cleanroom Equipment

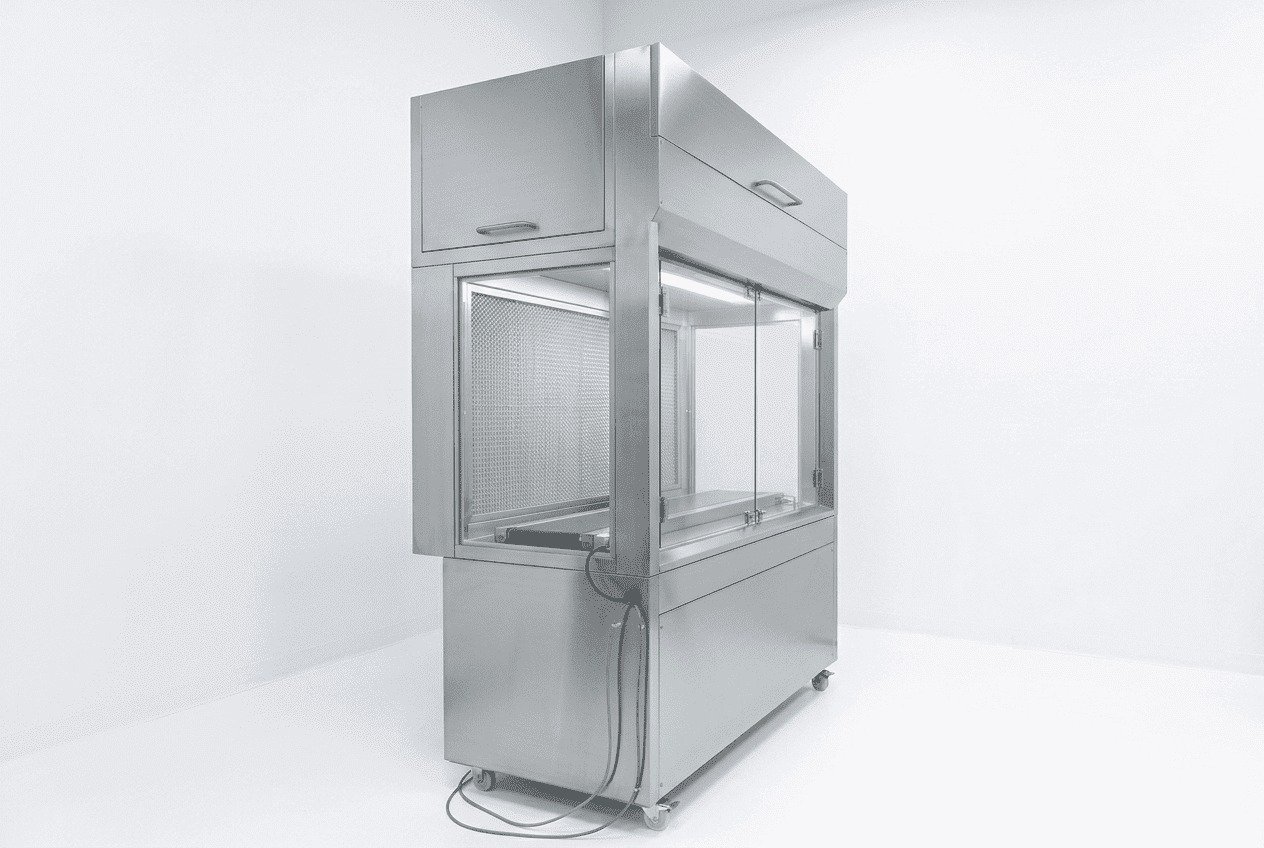

GI Powder Coated Fume Hood
Primary function of a fume hood is to provide a contamination-free work space for carrying out tests. A fume hood is a specially designed device made to limit exposure to harmful fumes, dust, smoke & mist developed during chemical testing. We are fume hood manufacturers and suppliers in India and we have been making these fume chambers for over 25 years and have successfully installed these units in various government as well as private organizations.Accumax India has a long user list all over India and we confidently say that we are one of fume hood manufacturing companies in India.
Product Overview
Fume Hood – Design & Performance Overview
Accumax India manufactures high-quality fume hoods in GI powder coated, stainless steel, and polypropylene with ceramic tile lining options. Features include a 5 mm glass sash with counterbalance load, aerodynamic design for efficient airflow, double wall construction for easy maintenance, and a granite work table with a small sink. The unit provides 800 LUX illumination, supports gas/water connections, and uses HDPE/FRP/PP/PVC ducting with a centrifugal blower (1440 RPM motor). Available in inbuilt or separate outdoor motor assembly. Ideal for protecting users from toxic chemical fumes and vapours in industrial and laboratory settings.
Technical Details
Product Specifications
MOC
Galvanized Iron Powder Coated, Stainless Steel, Polypropylene.
Type
Floor Standing Model / Table Top Model
Face Velocity
90 - 100 FPM /0.5 Mts. Per. Sec. (Average At 12" Sash Opening Fume Hood)
Air Volume
1000 CFM (Designed For Full Door Opening)
Air Flow type
Standard
Cabinet
Electro Galvanised Sheet With Epoxy Powder Coat Finish / Stainless Steel / Polypropylene With Smooth Finish.
Bottom Arrangements
Cabinets, With Cupboard With One Horizontal Partition And Shutters. Cupboards Will Be Provided With Branded Locking Arrangements And Aesthetic Handles Finished With Epoxy Powder Coating.
Baffles
Aerodynamic Shape Fully Made Of 3mm FRP.
Work Top
Easy To Clean And Chemical And Heat Resistant Black Granite 18mm.
Sash (Shutter)
Single, Vertical Sliding, Concealed Type Door. Balanced With Counter Weight, Sash Weights, Wire Etc., Provided With 5mm Thick Glass Window With Steel Frame.
Blower Type
Blower Type
Powered by
1 HP 1440 RPM Single Phase. Blower Is Sufficient For Maximum Distance Of 10 Mtrs. For Requirement More Than 10 Meters 3 HP Capacity Blower Is Required At Extra Cost.
Coupling
Direct
Balancing
Dynamically Balanced
Air Volume
1000 CFM
Static Pressure
2' W.G.
Casing
Casing With FRP Lining
Impeller
Fully Moulded PP Impeller
Exhaust Duct
PVC/FRP Duct Pipe Of 200 mm Dia With Suitable Elbow For A Length Of 2 Meters, Will Be Supplied With The System. Will Include Exhaust Chimney With Weather Cowl, Bends Flanges, Brackets Etc. Additional Length Of Ducting Will Be Supplied At Extra Cost.
Electrical Arrangements
2 Nos. 15/5 Amps 3 Pin Socket Cum Control Switch.
Illumination
By 4 Feet Tube Light.
Features
Key Features
- Made from Galvanized Iron Powder Coated, Stainless Steel, or Polypropylene
- Variety of lining and work surface options including ceramic tiles and granite
- 5 mm thick glass sash suspended on a safe device
- Support base with provision for air vent connection to evacuate tapped chemical vapours
- High quality HDPE/FRP/PP/PVC pipes and accessories for ducting
Applications
Industry Applications
- Laboratory work involving toxic fumes and vapours
- Pharmaceutical research and testing
- Petrochemical industries Forensic laboratories
- Quality control testing facilities R&D laboratories
- Chemical mixing and formulation units
- Educational chemistry labs Pathology and clinical diagnostic labs
