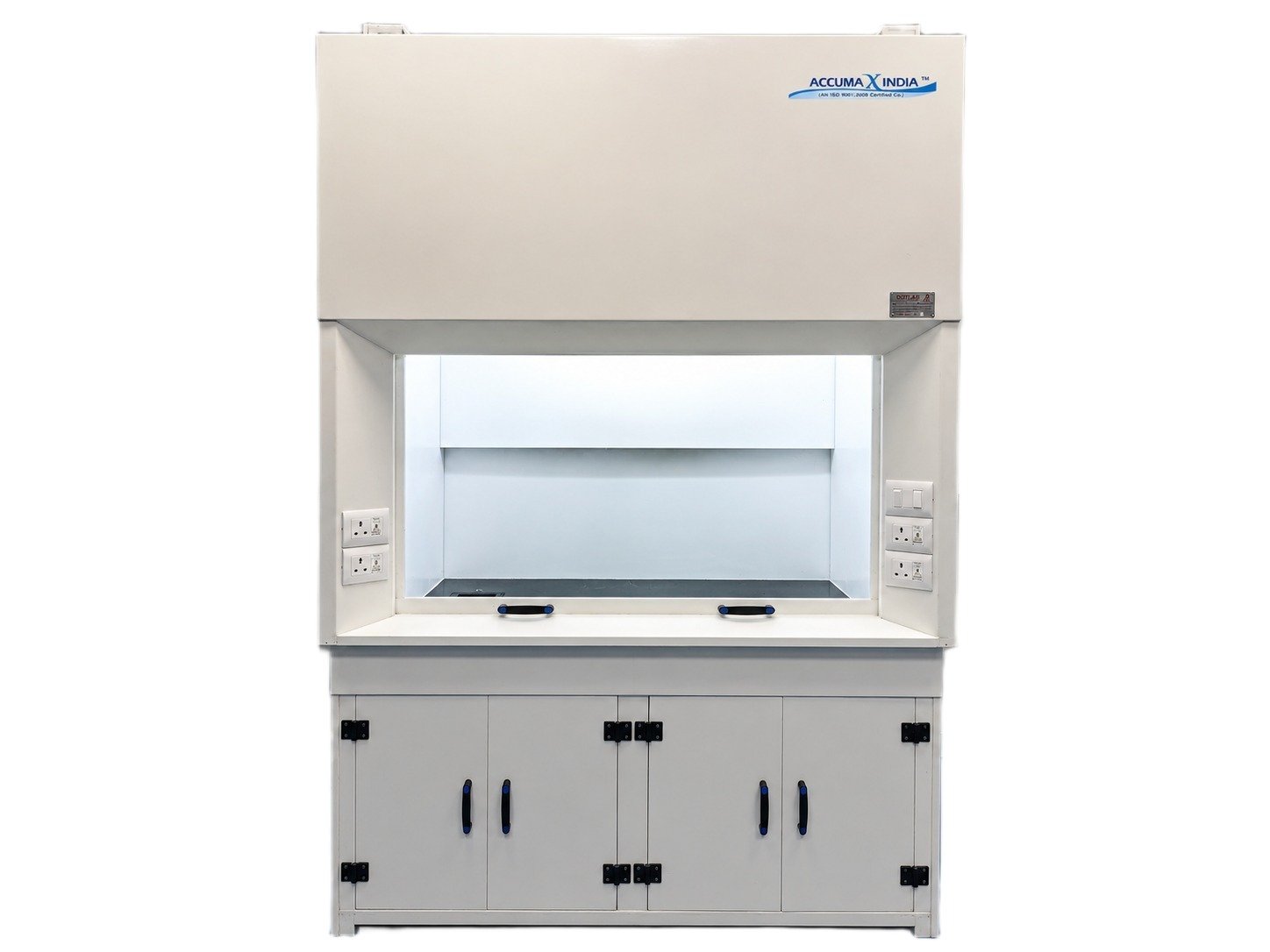

Polypropylene Fume Hood
The Polypropylene Fume Hood is specially designed for handling highly corrosive chemicals, acids, and hazardous fumes in laboratory environments. Made from premium-grade polypropylene material, it offers excellent chemical resistance, durability, and long-lasting performance
Product Overview
Polypropylene Fume Hood - Overview
The Polypropylene Fume Hood provides a safe and efficient working environment for laboratories dealing with corrosive chemicals and toxic fumes. Manufactured using high-quality polypropylene sheets, the hood is highly resistant to acids, alkalis, and chemical corrosion, making it ideal for demanding laboratory applications. Its robust construction, low maintenance design, and efficient airflow system ensure operator safety and reliable performance during chemical testing and research activities
Technical Details
Product Specifications
MOC
Galvanized Iron Powder Coated, Stainless Steel, Polypropylene.
Type
Floor Standing Model / Table Top Model
Face Velocity
90 - 100 FPM /0.5 Mts. Per. Sec. (Average At 12" Sash Opening Fume Hood)
Air Volume
1000 CFM (Designed For Full Door Opening)
Air Flow type
Standard
Cabinet
Electro Galvanised Sheet With Epoxy Powder Coat Finish / Stainless Steel / Polypropylene With Smooth Finish.
Bottom Arrangements
Cabinets, With Cupboard With One Horizontal Partition And Shutters. Cupboards Will Be Provided With Branded Locking Arrangements And Aesthetic Handles Finished With Epoxy Powder Coating.
Baffles
Aerodynamic Shape Fully Made Of 3mm FRP.
Work Top
Easy To Clean And Chemical And Heat Resistant Black Granite 18mm.
Sash (Shutter)
Single, Vertical Sliding, Concealed Type Door. Balanced With Counter Weight, Sash Weights, Wire Etc., Provided With 5mm Thick Glass Window With Steel Frame.
Blower Type
Blower Type
Powered by
1 HP 1440 RPM Single Phase. Blower Is Sufficient For Maximum Distance Of 10 Mtrs. For Requirement More Than 10 Meters 3 HP Capacity Blower Is Required At Extra Cost.
Coupling
Direct
Balancing
Dynamically Balanced
Air Volume
1000 CFM
Static Pressure
2' W.G.
Casing
Casing With FRP Lining
Impeller
Fully Moulded PP Impeller
Exhaust Duct
PVC/FRP Duct Pipe Of 200 mm Dia With Suitable Elbow For A Length Of 2 Meters, Will Be Supplied With The System. Will Include Exhaust Chimney With Weather Cowl, Bends Flanges, Brackets Etc. Additional Length Of Ducting Will Be Supplied At Extra Cost.
Electrical Arrangements
2 Nos. 15/5 Amps 3 Pin Socket Cum Control Switch.
Illumination
By 4 Feet Tube Light.
Features
Key Features
- Excellent resistance against acids, alkalis, and corrosive chemicals.
- Durable polypropylene construction with rust-free performance.
- Efficient exhaust system for safe removal of harmful fumes.
- Smooth surface finish for easy cleaning and maintenance.
- Customizable design available in different sizes and configurations.
Applications
Industry Applications
- Pharmaceutical industries
- Electronics manufacturing units
- Food processing facilities
- Research laboratories
- Biotechnology industries
- Cleanroom environments
