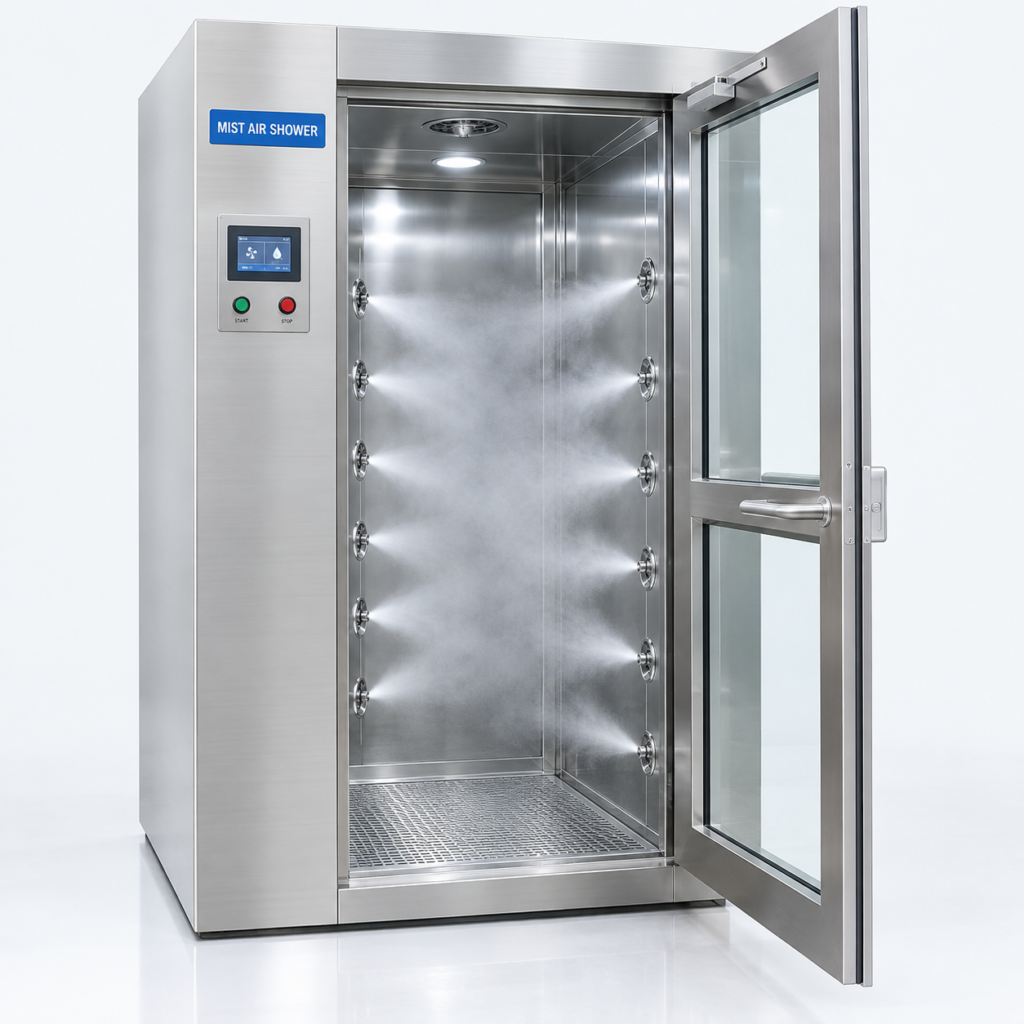

Mist Air Shower

Mist Air Shower

Accumax India Mist Shower is a chamber installed at exit of Cleanroom where Hazardous Products like Onco Drugs, Hormonal injectables, Sterile product and likewise. It is designed to provide protection during de-gowning process while exiting the area. Wet surfaces will not shred any particles into atmosphere and thus the mist shower became a popular in the Pharmaceutical industry.

It is widely understood that the greatest source of particulate contamination in a cleanroom is from the operator. Mist Shower is typically installed as a physical barrier between operator change areas (grey areas) and the cleanroom (clean area) to help eliminate this primary contamination source.

The effectiveness of the system is primarily dependent on Mist cycle duration, operator technique during mist cycle, material and design of protective clothing, and the physical and chemicals properties of particulate.




Air shower Specifications

1 Dimensions WxDxH :  900x1000x2000 mm (Inner Area)
WxDxH: 1400x1075x2150 mm (Outer Area) Or Customized
2 MOC Galvanized Iron Powder Coated / Stainless Steel 304
3 Blower Assembly

Dynamically And Statically Balanced Motors And Blowers



4 Motor Make Eyaani
5 Nozzles Made Of Stainless Steel Rotating And Adjustable Fixed Either Side Of Wall And Top Ceiling Velocity 70 Meters/Sec
6 Blower CFM 25-30 Meters/Sec
7 Face Velocity 20-22 Meters/Sec (3937-4330 FPM)
8 Air Flow 20-22 Meters/Sec (3937-4330 FPM)
9 Class 10000
10 Interlocking of Doors Interlocking Facility Of Doors, One Door Lock Automatically When Other Is Opened With Electromagnetic Lock, With Timer Setting
11 Flooring Aluminium Checker Sheet Anti Skid Or Stainless Steel
12 Door Frame Made Of Stainless Steel / Galvanized Iron Powder Coated Interlocking Facility, Half Toughened Glass
13 Hingle, handle Make Harrison/Godrej Or Equivalent
14 Light LED
15 Prefilter Washable Prefilter Down To 10 Microns, Particulate At An Efficiency Of 90% Duly Tested
16 Hepa Filters With 0.3 Microns Particulate Of 99.978% Efficiency And DOP Tested, Frame Of Aluminium, Microfiber Glass Media Epoxy Sealed, Non Washable
17 Operations Automatic Actuation Operation And Adjustable Timer Trough Microprocessor Based Controller
18 Noise Level Less Than 75 Db
19 Safety Emergency Switch In Chamber
20 Electric Supply Work On 220v AC 1 Phase Or 3 Phase (To Specify)




Inner Size: (W X D X H)

  • 900 x 1000 x 2000mm (2 Persons)
  • 900 x 1500 x 2000mm (3 Persons)
  • 900 x 2000 x 2000mm (4 Persons)
  • 900 x 2500 x 2000mm (5 Persons)
  • 900 x 3000 x 2000mm (6 Persons)
  • 900 x 3500 x 2000mm (7 Persons)
  • 900 x 4000 x 2000mm (8 Persons)
  • 900 x 4500 x 2000mm (9 Persons)
  • 900 x 5000 x 2000mm (10 Persons)
  •
