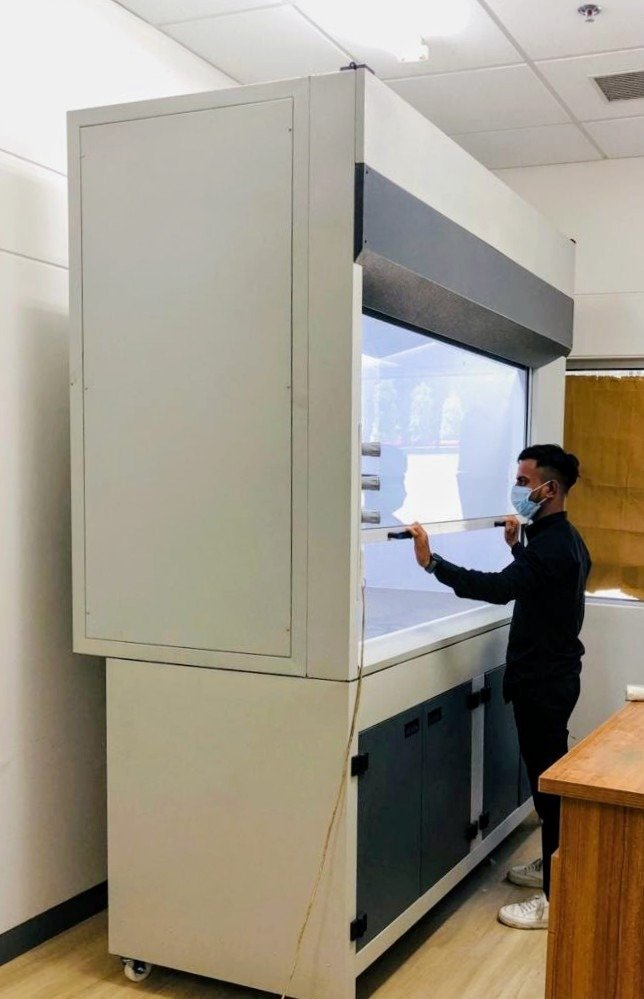

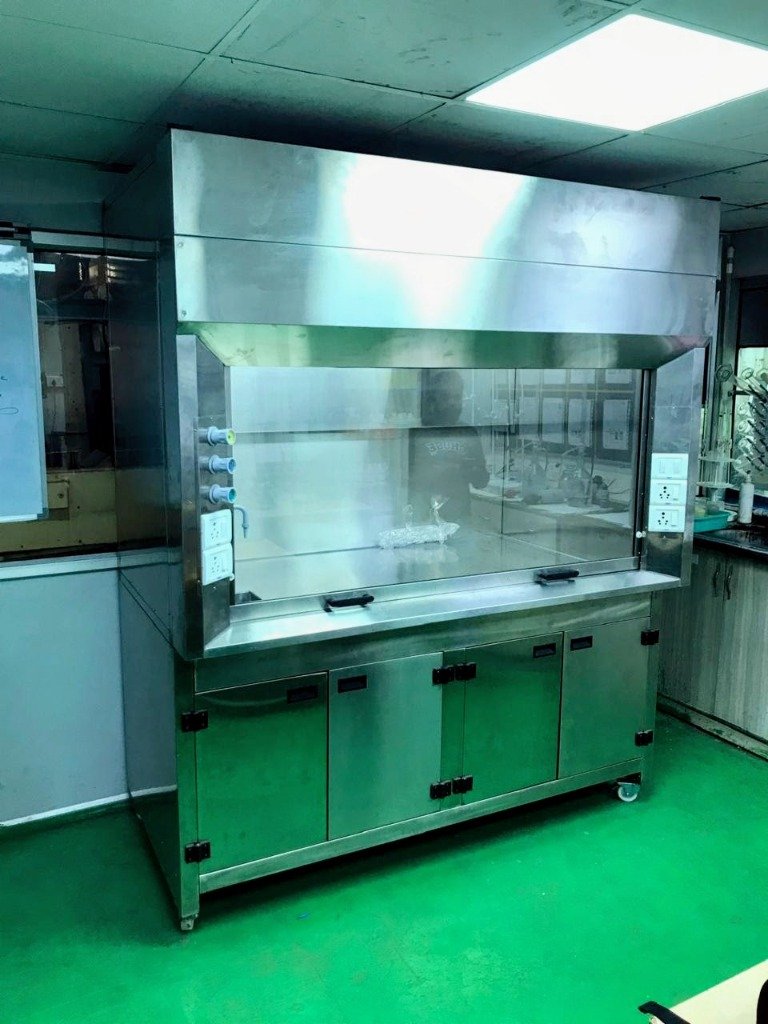

FUME HOOD

Fume Hood Is An Enclosure Which Is Used To Remove Fumes And Air Borne Particles At The Contamination Source. It Is A Kind Of Fume Extraction System Which Prime Work Is To Remove Smoke, Dust Mist And Chemical Fumes And Restrict Their Entry Into Laboratory Environment. A Laboratory Fume Hood Comprises Of Metallic Sheet Enclosure, Marble Stone Work Bench, Service Fixture And Electrical Points. For Fume Extraction, Heavy Duty Blowers Are Fitted And Connected To The Exhaust Duct.

FUME HOOD APPLICATIONS

As The Name Explains Itself, A Fume Hood Is Used In Various Applications In A Laboratory Where Fumes Are Generated And Restriction Of Their Exposure To The Operator And Environment Is Prime Requisite. Therefore, It Is Important Equipment For Any Laboratory Aiming For Enhancing Safety Of Personnel As Well As Laboratory Environment. Common Applications And Uses Of A Fume Hood Include Solvent Mixing, Soldering And Working With Volatile Organics, Powder And Flammable Chemicals, Different Types Of Acids.

WORKING CHAMBER

Inner Working Chamber Area Is The Most Important Part Of Fume Hood Which Remains In Direct Contact Of Fumes, Acids And Different Types Of Chemicals. We Make Inner Chamber Walls Of GI Powder Coated /Stainless Steel 304 Grade Which Is Further Coated With FRP.

WORK BENCH

The Work Bench Of Fume Hood Is Made Granite Marble.

EXTERNAL SURFACE

External Surface Is Either Made Of Powder Coated GI Sheet Or Stainless Steel Sheet.

SASH

It Is A Glass Window Mechanism Which Is Moved Up And Down Using Sash Track. Sash Track Is A System Made Of Weights And A Pulley. Operator Can Easily Move Sash Up Or Down And Keep At Desired Height During Work.

BLOWER

For Suction In Fume Hood We Provide Centrifugal Blower Assemble Made Of Direct Drive Motor.

CHEMICAL STORAGE CABINET

At The Bottom Of Fume Hood We Provide Cabinet To Store Chemicals.

SERVICE VALVES

Service Valves Are Optional Accessories: At Added Cost We Can Fit Wet And Dry Service Valves (Brass Needle Valves) For Raw Water, Nitrogen Gas, Air And Vacuum.

ELECTRICAL UTILITIES

To Run The Apparatus Inside Fume Hood, We Fit Electrical Sockets 2, 4 Or 6 As Required.

Specifications
